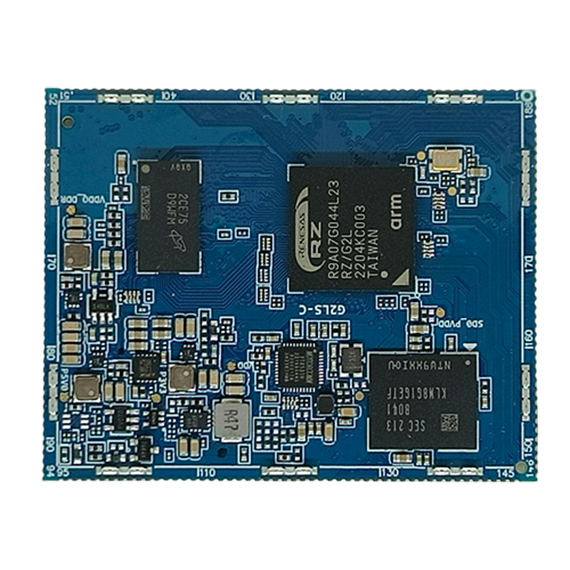

The G2L core board is designed based on the industrial-grade ARM processor series of the Ruisa company. The ARM Cortex-A55 architecture has a operating frequency of 1.2GHz. All components of the core board adopt industrial grade, and the most widest running temperature can reach -40 ° C ~+85 ° C. The DDR4 memory of the plate 2GBYTE is stored, and the storage uses an 8Gbyte EMMC storage chip (1G capacity optional). The rectification performance is stable and the core board resources are rich. A total of 188pincpu pins can achieve different expansion methods according to functional requirements.

The G2L core board is designed based on the industrial-grade ARM processor series of the Ruisa company. The ARM Cortex-A55 architecture has a operating frequency of 1.2GHz. All components of the core board adopt industrial grade, and the most widest running temperature can reach -40 ° C ~+85 ° C. The DDR4 memory of the plate 2GBYTE is stored, and the storage uses an 8Gbyte EMMC storage chip (1G capacity optional). The rectification performance is stable and the core board resources are rich. A total of 188pincpu pins can achieve different expansion methods according to functional requirements.

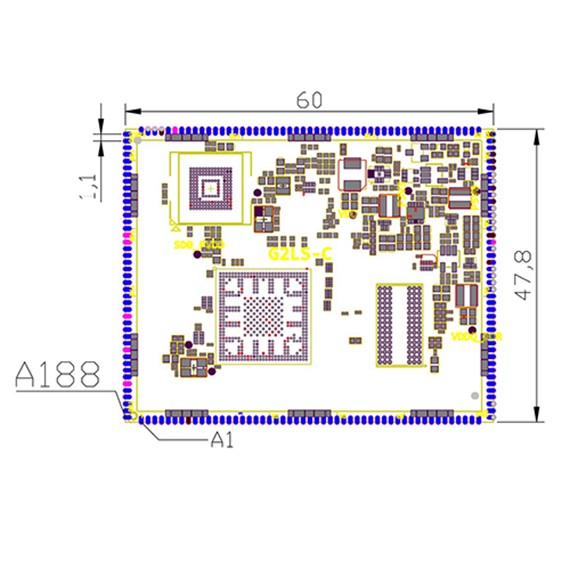

The core board uses the stamp hole connection method. The stamp hole connection method is more stable. It has the advantages of earthquake resistance, oxidation, and anti -interference.

　Industrial -grade high -performance core board.

　　All core board chips are used in industrial-grade materials and tested through strict high and low temperature tests of -40 ° C ~+85 ° C.

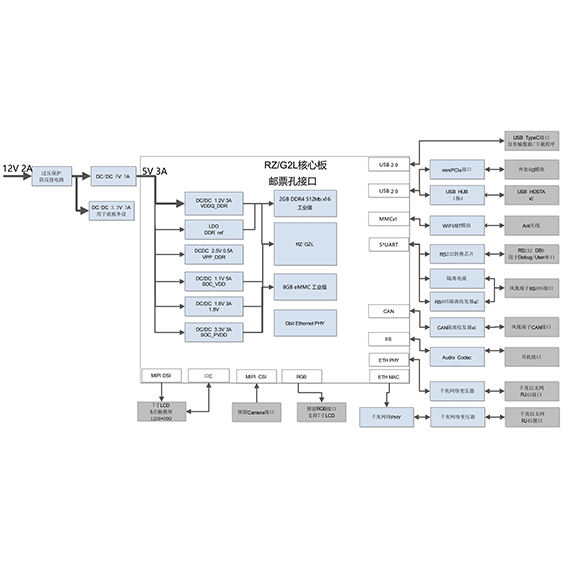

　　Rich communication interface

　　The core board pins 188pin, 2 Gigabit Ethernet, up to 5 FIFO serial ports, 2 roads without FIFO serial port, 2 road can

       There are many interfaces.

　　Support RGB24 LCD and MIPI interfaces, you can support MIPI to HDMI interface, MIPI to LVDS interface.

　　Multimedia function is also excellent

　　The maximum resolution is 1920*1080.

　　Support MIPI camera, support preview, camera, and camera.

Support multiple communication modules

　　The core board supports 3G modules, 4G modules, GPRS modules, WIFI modules, Bluetooth modules, GPS modules and other modules

   　10 years of product life cycle, stable period and price of intersection and price

　　Rich software and hardware information

Software parameter
