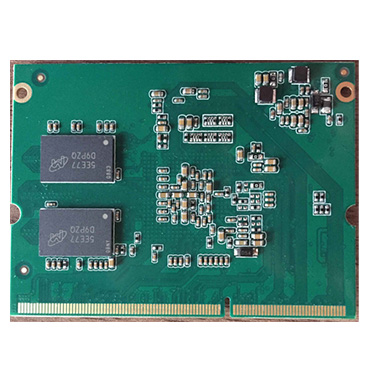

Features
CPU: I.MX6
Architecture: Cortex A9
Main frequency: 1GHZ
Memory: 1Gbyte
Flash: 8Gbyte
Operating system: Android
Interface method: DIMM interface
The Flying Sikar I MX6 dual-core streamlined series CPU, the inside is the Cortex-A9 core, and the main frequency is as high as 1GHz. Support RGB, LVDS, HDMI interface video output and multiple camera input modes, and can support dual -screen display. Internal integrated 3D, 2D graphic acceleration unit, easily handle the current mainstream graphics system. And the peripheral interface is rich, the integration is high, and most of the CPU pins are drawn through the pins, and the user configuration is flexible. Can greatly simplify hardware design.
Interface | Describe |
CPU | I.MX6DL/Q |
Operating temperature | -20℃~+70℃ |
Architecture | ARMv7 Cortex-A9 |
Main frequency | 1GHZ |
Memory | 1Gbyte DDR3 |
ROM | 8Gbyte eMMC |
Size | 67.6mm*50mm |
Relative humidity | 10%~90%(No exposure) |
Operating Voltage | 4.2VVoltage supply |

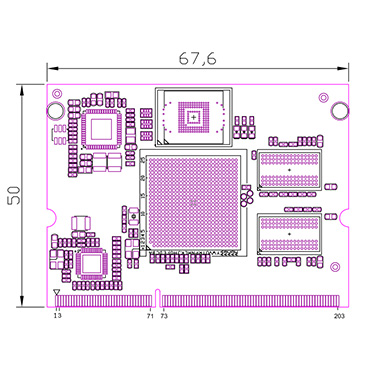

Mechanical Dimensions:

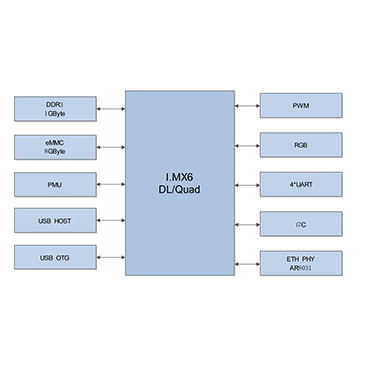

Product function box diagram:
Software parameter
AndroidVersion | Android 4.4.2 |
Burn | USBFast burning |
Fast burning | Ubuntu16.04 |
AndroidCore | eMMCDrive(8G) |
RTCDrive | |
IODrive | |
SPIDrive | |
I2CDrive | |
USB UVCCamera Drive | |
PWMControl Drive | |
Capacitor touch Drive | |
Ethernet,(AR8031,1000/100/10Mbps) | |
Audio Drive, supportSGTL5000 | |
4G,ME909s-821 | |
WiFi,RTL8723BU/RTL8723DU,STA | |
CAN 2.0B | |
HDMIDrive | |
USB Device | |
USB OTG | |
LVDS single and double road Drive | |
USB to drive | |
Serial port drive: 5piece | |
F/sd/mmc card drive: maximum supportable64GB |
CPU | NXP I.MX6DL/Q |
Architecture | ARMv7 Cortex-A9 |
2D/3D | support |
Graphic processor | ARM Mail-G31 |
LCD | 24bitRGBinterface |
LVDS | Double8 signalLVDS, Maximum support resolution1920*1080 |
HDMI | 1 roadHDMIinterface |
PCIe | 1 roadPCIe |
CAN | 2 road |
I2C | 2 road |
EIM | 1 Road bus interface, expanded bus device |
CSI | Camera interface |
USB2.0 OTG | 1 road |
USB2.0 HOST | 1 road |
UART | 3 road |
Ethernet | 1 road1000MEthernet interface |
SD/MMC/SDIO | 2 roadSD/MMCInterface |
Audio | 1 road |
VideoEncoder | Hardware codec |
SPI | 2 road |
WTC-IMX6QJ: I.MX6Q core board, 2Gbyte DDR, 16Gbyte EMMC, DIMM interface
